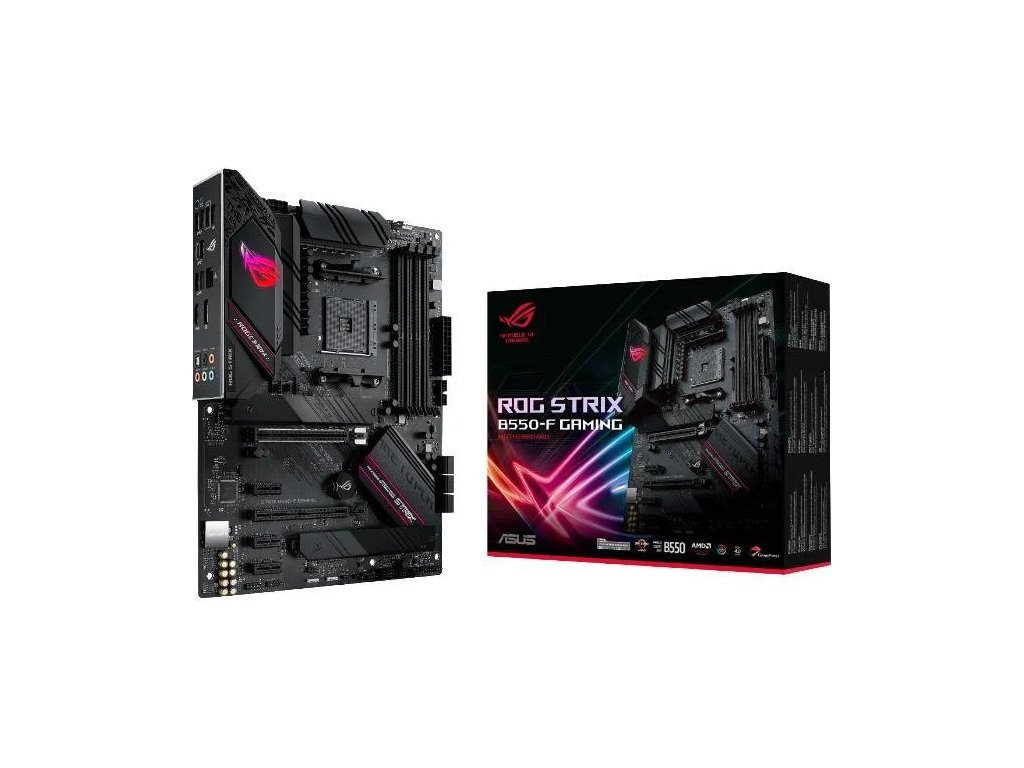

ASUS ROG Strix B550-F Gaming

Detailní popis produktu

Chipset: AMD B550 Rozměrový formát: ATX Form Factor (305 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors - 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture OptiMem II ECC Memory (ECC mode) support varies by CPU Grafická karta: Integrated Graphics Processor (na základě procesoru) 1x DisplayPort 1.2 1x HDMI 2.1(4K@60HZ) Multi GPU: AMD 2-Way CrossFireX Technology Zvuková karta: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A Síťová karta: Intel® I225-V 2.5Gb Ethernet (ASUS LANGuard) Rozšiřující sloty: 1x PCIe 4.0 x16 (x16 mode) 1x PCIe 3.0 x16 (x4 mode) 3x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: 6x SATA 6Gb/s port(s) M.2: 1x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) USB: zadní USB porty ( celkem 8 ) 2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) 2x USB 2.0 port(s) přední USB porty ( celkem 6 ) 2x USB 3.2 Gen 1 port(s) 4x USB 2.0 port(s) Interní porty: 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 3x Chassis Fan connector(s) 1x AIO_PUMP connector 1x AAFP connector 2x Aura RGB Strip Header(s) 1x Addressable Gen 2 header(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6x SATA 6Gb/s connector(s) 1x Thunderbolt header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin ATX 12V Power connector(s) 1x 4-pin ATX 12V Power connector(s) 1x System panel(s) 1x Thermal sensor connector(s) 1x Clear CMOS jumper(s) Externí porty: 1x Intel® I225-V 2.5Gb Ethernet 1x DisplayPort 1x HDMI 2x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®) 4x USB 3.2 Gen 1 2x USB 2.0 1x Optical S/PDIF out 1x BIOS FlashBack™ Button(s) 5x Gold-plated audio jacks Obsah balení: User's manual 4x SATA 6Gb/s cable(s) 1x Supporting DVD 1x ROG Strix stickers 1x Cable ties pack(s) 1x Extension cable for Addressable LED 1x ROG Thank you card 1x M.2 SSD screw package(s) 1x M.2 Rubber Package(s) BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
