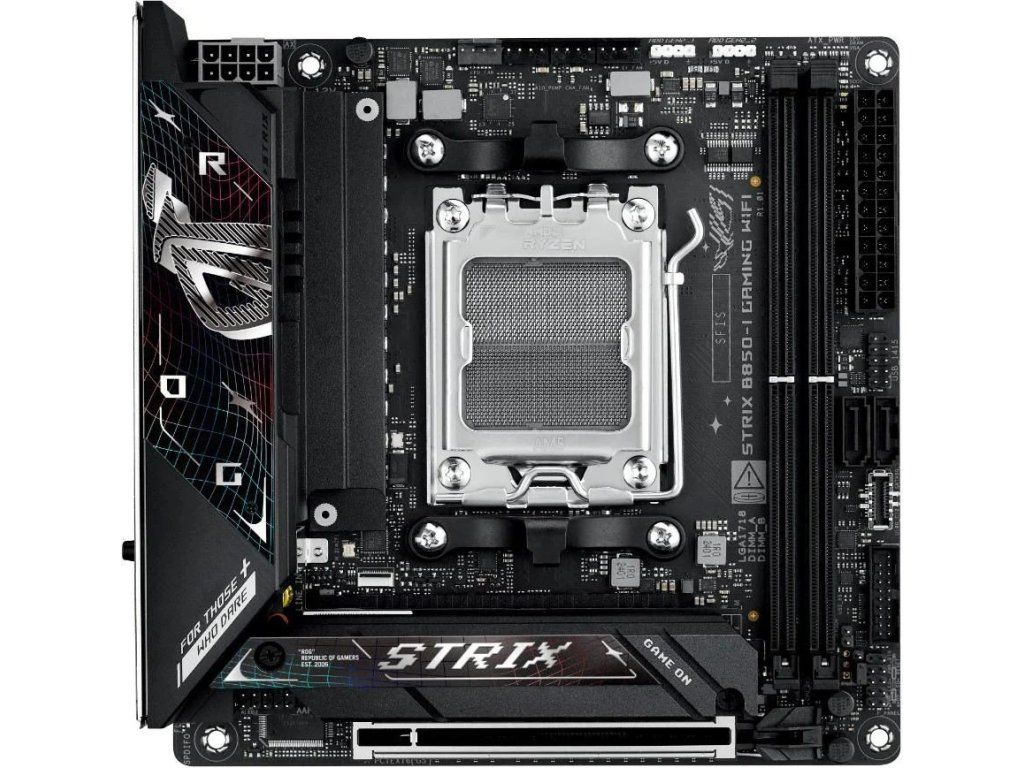

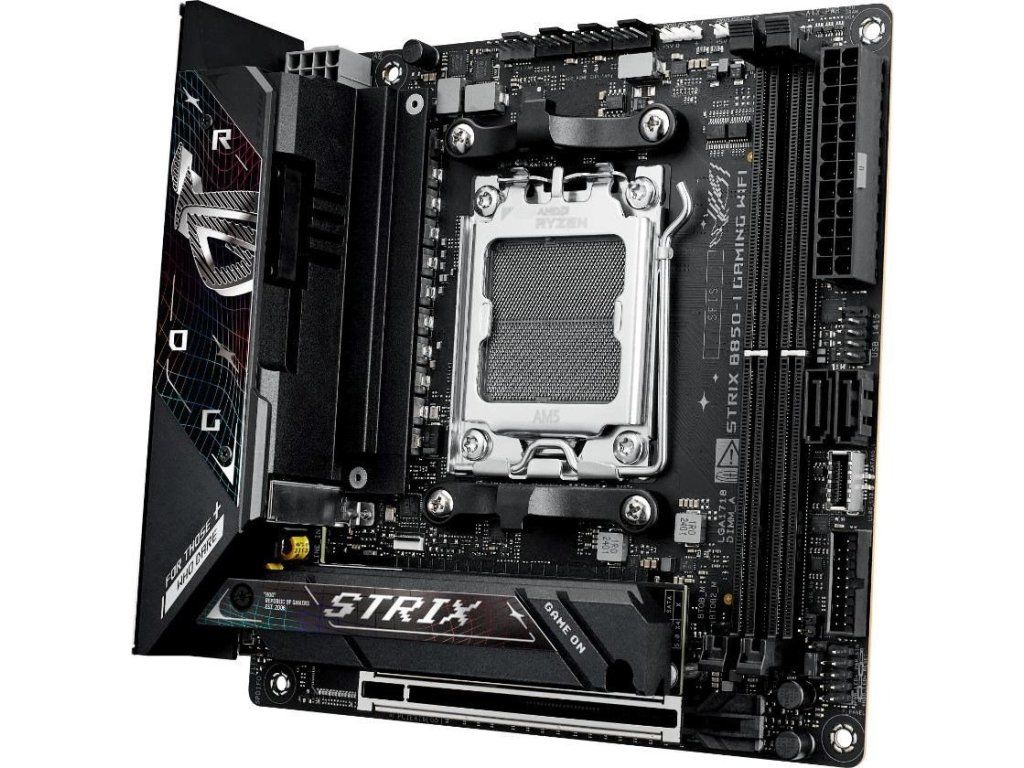

ASUS ROG Strix B850-I Gaming WiFi

Detailní popis produktu

ASUS ROG Strix B850-I Gaming WiFi Mini-ITX Form Factor CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B850 Paměť: 2 x DIMM slot, max 96GB, DDR5 Dvoukanálová paměťová architektura Podpora rozšířených profilů AMD pro přetaktování (EXPO™) Podpora modulů DIMM Flex Rozšířený profil paměti ASUS (AEMP) ECC a Non-ECC Un-buffered DIMM Grafické porty: 1 x HDMI™ port 1 x USB 10Gbps ports support USB Type-C® display outputs Rozšiřující sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot(s) AMD Ryzen™ 8000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot(s) Úložný prostor: Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Ethernet: 1 x Intel® 2.5Gb Ethernet ASUS LANGuard Připojení a Bluetooth: Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4*** USB: Zadní USB (Total 8 ports) 1 x USB 20Gbps port(s) (1 x USB Type-C®) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 port(s) (2 x Type-A) Přední USB (Total 5 ports) 1 x USB 10Gbps 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Unique de-pop circuit A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Vstupy/výstupy zadního panelu: 1 x USB 20Gbps port(s) 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode) 2 x USB 2.0 port(s) (2 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 3 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x FlexKey button Interní vstupy/výstupy: Ventilátory a chlazení: 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 1 x 4-pin Chassis Fan header(s) 1 x Extra Flow Fan header(s) Napájení: 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Úložiště: 2 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB: 1 x USB 10Gbps connector (support(s) USB Type-C® ) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Různé: 2 x Addressable Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header Příslušenství: Kabely: 1 x Panel cable 1 x ROG USB2.0 splitter cable 2 x SATA 6Gb/s cables Různé: 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 backplate Q-Latch package(s) 1 x M.2 Q-Slide package 1 x ROG key chain 1 x M.2 backplate rubber package(s) 1 x Screw package(s) for M.2 SSD
