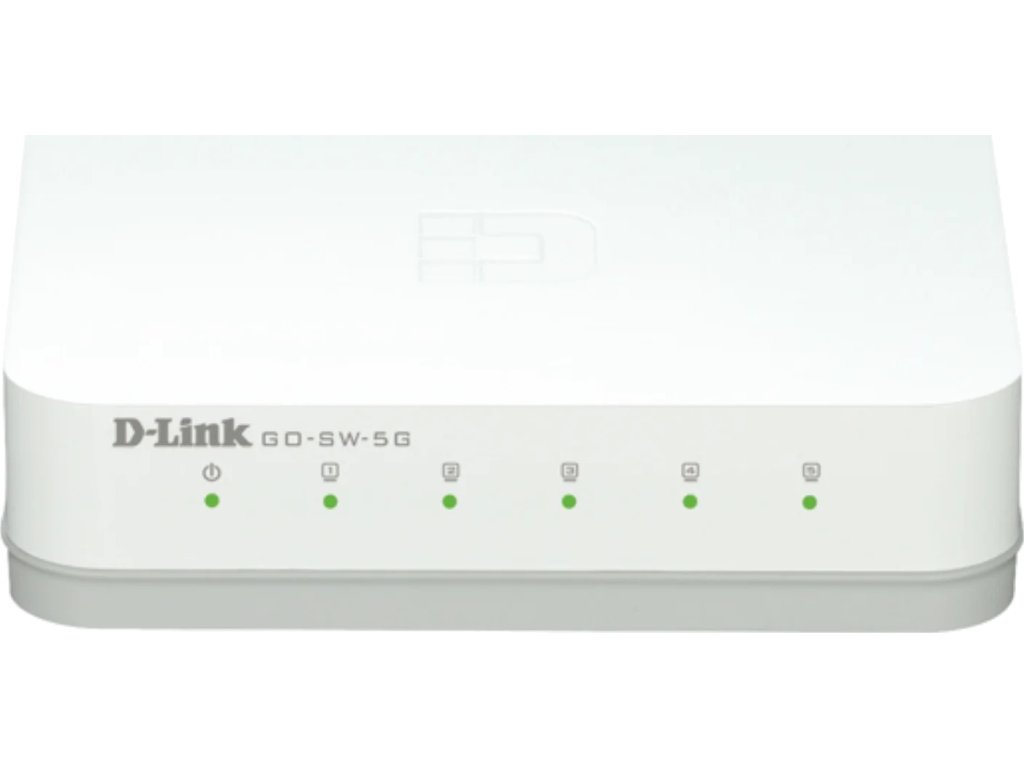

D-Link GO-SW-5G

Detailní popis produktu

D-Link GO-SW-5G 5-Port Gigabit Easy Desktop Switch OVERVIEW The 5-Port Gigabit Easy Desktop Switch (GO-SW-5G) offers an economical way for SOHO and small to medium businesses benefit from the increased bandwidth of Gigabit Ethernet. It provides Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. SPECIFICATIONS Switching Fabric • 10Gbps Standards • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x Flow Control • IEEE 802.3az Energy-Efficient Ethernet (EEE) Protocol • CSMA/CD Data Transfer Rates • Ethernet: • 10 Mbps (half duplex), 20 Mbps (full duplex) • Fast Ethernet: • 100 Mbps (half duplex), 200 Mbps (full duplex) • Gigabit Ethernet: • 2000 Mbps (full duplex) Topology • Star Network Cables • 10BASE-T: • UTP CAT 3, 4, 5/5e (100 m max.) • EIA/TIA-586 100-ohm STP (100 m max.) • 100BASE-TX, 1000BASE-T: • UTP CAT 5/5e (100 m max.) • EIA/TIA-568 100-ohm STP (100 m max.) Media Interface Exchange • Auto MDI/MDIX adjustment for all ports LED Indicators • Per port: Link/Activity/Speed • Per device: Power Transmission Method • Store-and-forward MAC Address Table • 2K MAC Address Learning • Automatic update Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port • Gigabit Ethernet: 1,488,000 pps per port RAM Buffer • 128KB per device Jumbo Frames • 9,216 Bytes DC Input • External 5 V/1 A Level "V" Power Adapter Power Consumption • DC input: 1.67 watts • AC input: 2.7 watts MTBF • 815,700 hours Operating Temperature • 0 to 40 °C Storage Temperature • -10 to 70 °C Operating Humidity • 10% to 90% RH non-condensing Storage Humidity • 5% to 90% RH non-condensing Dimensions • 97 x 79 x 28 mm Weight • 105 grams Certifications • FCC Class B • ICES-003 Class B • CE Class B • C-Tick Class B • VCCI Class B • cUL/UL • CCC • Anatel • LVD
