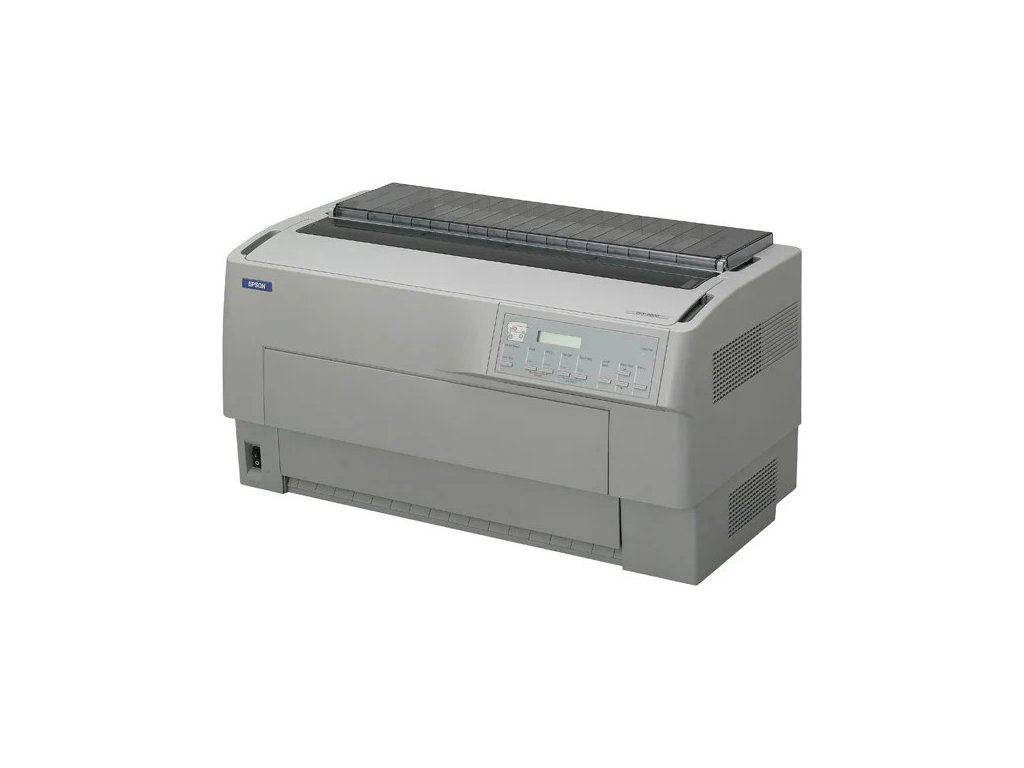

Epson DFX-9000N A3 4x9 jehel 1550 zn/s 1+9 kopii USB 1.1 LPT COM LAN

Detailní popis produktu

Resolution Maximum 240x144dpi (NLQ) General Characteristics Columns 136 columns (10cpi), 163 columns (12cpi), 204 columns (15cpi), 233 columns (17cpi), 272 columns (20cpi) NLQ (CPS) 330 / 330cps at 10/12cpi Draft (CPS) 1320 / 1320cps at 10/12cpi High Speed Draft 1550 / 1450cps at 10/12cpi Printer Fonts Bitmap fonts & Barcode fonts Character Tables One italic and 38 graphics character tables International Character Sets 13 international character sets and one legal Pitch 10, 12, 15, 17, 20cpi Line Spacing 1/6 inch (4.23mm) or programmable in 1/432 inch (0.059mm) increments Input Buffer 128KB Noise Level 58dB(A) MVBF / MTBF 133 million lines / 20,000 (POH) Print Head Life 400,000 million characters Interface Bi-directional parallel interface (IEEE 1284 nibble mode supported), Serial, USB (version1.1), Ethernet Copy Capability 1 + 6 (rear), 1 + 9 (front) Paper Handling Functions Auto paper thickness adjustment, Auto paper change, Paper jam detection Bar Codes EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET Paper Feeding Feeding Format Push tractor feed (front, rear), Push & Pull Tractor feed (front, rear) Paper Path Tractor (Front or rear in, top out) Electrical Specification Rated Voltage Range AC 100 to 240 V Rated Frequency Range 50 to 60Hz Power Consumption Approx. 185W. Approx. 7.5W in sleep mode. Energy Star Compliant Safety and Regulations Safety Standards UL60950, SA C22.2 No. 60950, EN 60950 EMC FCC part 15 subpart B class B, CAN/CSA-CEI/IEC CISPR22 Class B EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 Dimensions and Weight Dimensions (W x D x H) 700 x 378 x 363mm Weight 34Kg Paper Handling Continuous Paper (Single Sheet) W x L = 76.2 x 76.2mm to 419.1 x 558.8mm Thickness: Min. 0.065mm, max. 0.10mm Weight: Min. 52 g/m2, max. 82 g/m2 Continuous Paper (Multi Part) W x L = 76.2 x 76.2mm to 419.1 x 558.8mm Copies: 1 original + 6 copies (Rear entry), 1 original + 9 copies (Front entry), Total Thickness: Min. 0.12mm, max. 0.53mm (Rear entry) Min. 0.12mm, max. 0.79mm (Front entry), Weight (one sheet of multipart): Min. 41 g/m2, max. 56 g/m2 Labels Base sheet W x L = 76.2 x 76.2mm to 419.1 x 558.8mm Label size; More than 63.5mm (W), 23.8mm (H), corner radius R2.5mm Base sheet thickness: Min. 0.07mm, max. 0.09mm Total Thickness: Min. 0.16mm, max. 0.19mm (Rear entry) Weight: 64 g/m2 Continuous Forms with Labels Base sheet W x L = 76.2 x 76.2mm to 419.1 x 558.8mm Total Thickness: Min. 0.065mm, max. 0.53mm (Rear entry) Min. 0.065mm, max.0.79mm (Front entry) Overlapping Multi-part Forms Base sheet W x L = 76.2 x 76.2mm to 419.1 x 558.8mm Total Thickness: Min. 0.13mm, max. 0.53mm (Rear entry) Min. 0.13mm, max. 0.79mm (Front entry) Ribbon Cartridge Type / Colour Fabric / Black Ribbon Life 15 million characters (Draft 10cpi, 14 dots/character) Options Ribbon Cartridge (Black) (S015384) Perforation Cutter (C12C815072) Pull Tractor Unit (C12C800382) 100 BaseTx/10BaseT Ethernet Print Server (C12C823914) 32KB intelligent serial I/F card (C12C823081) Serial I/F card (C12C823061) Coax I/F card (C12C823142) Twinax I/F card (C12C823152) Local Talk I/F card (C12C823122)
