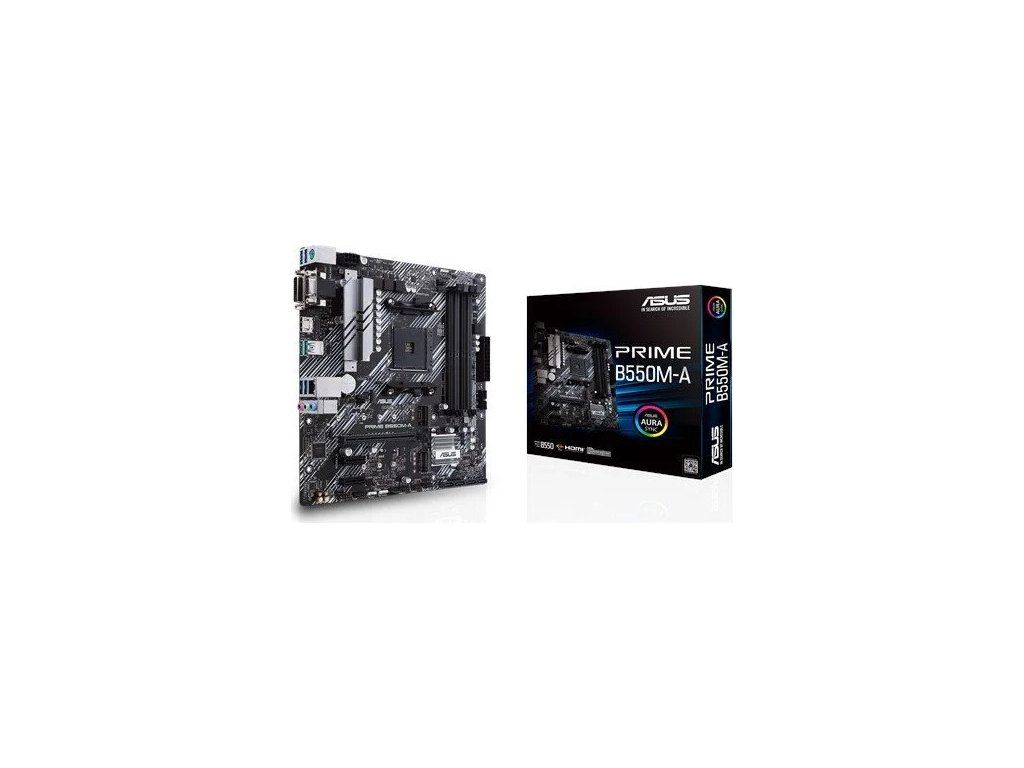

ASUS Prime B550M-A

Detailní popis produktu

Chipset: AMD B550 Rozměrový formát: mATX Form Factor (244 mm x 244 mm) Podpora pro procesory: AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors Patice procesoru: AM4 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 3rd Gen AMD Ryzen™ Processors - 4600(O.C)/4400(O.C)/4266(O.C.) /4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.) /3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors - 4800(O.C.)/4600(O.C) /4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.) /3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU Grafická karta: (na základě procesoru) 1x D-Sub 1x DVI-D 1x HDMI 2.1(4K@60HZ) Zvuková karta: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC Síťová karta: Realtek RTL8111H 1Gb Ethernet Rozšiřující sloty: 1x PCIe 4.0 x16 (x16 mode) 2x PCIe 3.0 x1 RAID řadič: 0, 1, 10 SATA: 4x SATA 6Gb/s ports M.2: 1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 1x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support USB: zadní USB porty ( celkem 6 ) 2x USB 3.2 Gen 2 port(s)(2 x Type-A) 4x USB 3.2 Gen 1 port(s)(4 x Type-A) přední USB porty ( celkem 6 ) 2x USB 3.2 Gen 1 port(s)(2 x Type-A) 4x USB 2.0 port(s)(4 x Type-A) Interní porty: 1x CPU Fan connector(s) 1x CPU OPT Fan connector(s) 2x Chassis Fan connector(s) 2x Aura RGB Strip Headers 1x Addressable Gen 2 header(s) 1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1x SPI TPM header 4x SATA 6Gb/s connector(s) 1x S/PDIF out header(s) 1x 24-pin EATX Power connector(s) 1x 8-pin EATX 12V Power connectors 1x Front panel audio connector(s) (AAFP) 1x Clear CMOS jumper(s) 1x System panel connector 1x COM port header 1x Speaker connector Externí porty: 1x PS/2 keyboard/mouse combo port(s) 1x DVI-D 1x D-Sub 1x HDMI 1x LAN (RJ45) port(s) 2x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4x USB 3.2 Gen 1 (blue) Type-A 3x Audio jack(s) Obsah balení: I/O Shield 2x SATA 6Gb/s cable(s) 1x Supporting DVD User manual 1x M.2 SSD screw package(s)
